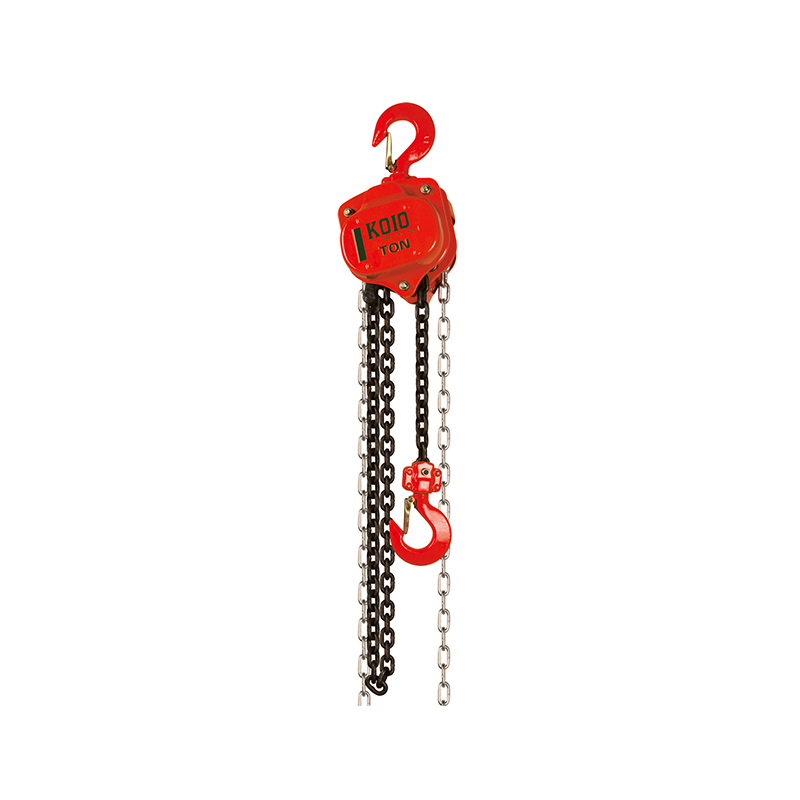

Features of VT Chain Block:
• Double pawl braking system
• Asbestos free friction disc
• Industrial power coating meet RoHS requirement
• 1500 cycles lifting test , meet JBT7334,EN13157, ANSI B30.16, AS1418 standards
• Double encloser to keep out of water and dust
• Safe and reliable braking
• Shape of hook makes operating easily
Parameters:
Model | VT-0.5 | VT-1 | VT-1.5 | VT-2 | VT-3 | VT-5 | VT-10 | VT-20 | |
Capacity (T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
Standard Lifting Height (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
Running test load (kg) | 750 | 1500 | 2250 | 3000 | 4500 | 7500 | 15000 | 30000 | |
Effort required to lift max. load (N) | 225 | 309 | 310 | 310 | 350 | 400 | 410 | 410*2 | |
Load Chain Dia.(mm) | 5*15 | 6.3*19 | 7.1*21 | 8*24 | 7.1*21 | 9*27 | 9*27 | 9*27 | |
Hand Chain Dia.（mm） | 5*22.2 | 5*22.2 | 5*22.2 | 5*22.2 | 5*22.2 | 5*22.2 | 5*22.2 | 5*22.2 | |
Net weight(kg) | 8.5 | 11 | 13.5 | 17.5 | 20.5 | 36.5 | 60 | 146 | |
Extra weight meter of extra lift(kg) | 1.3 | 1.62 | 2 | 2.3 | 3.2 | 4.5 | 8.1 | 16.2 | |
Dimensions（mm） | A | 132 | 150 | 152 | 185 | 152 | 185 | 185 | 220 |
B | 152 | 156 | 180 | 207 | 207 | 267 | 380 | 440 | |
C | 315 | 360 | 375 | 430 | 500 | 680 | 750 | 940 | |
D | 34 | 36 | 48 | 48 | 50 | 57 | 80 | 106 | |
K | 27 | 32 | 36 | 36 | 38 | 48 | 51 | 70 | |
  | |||||||||
