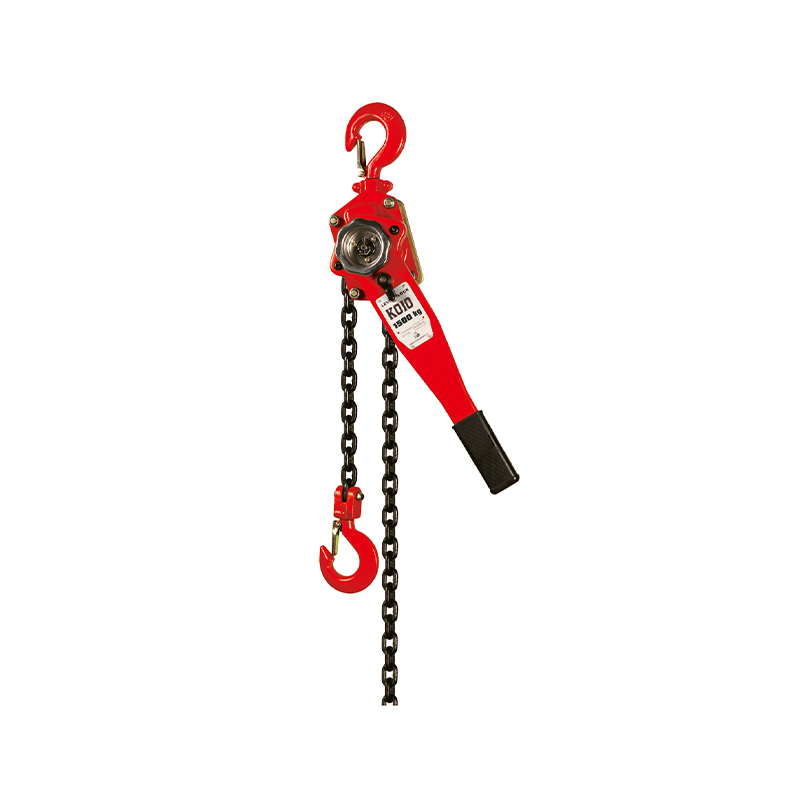

Features:
Tight in structure, small in size , light in weight and easy to carry. It applys especially to field operation and higher level
It is made of high strength alloy steel with powder coating ,firm , impact-resistant and abrasion-proof
Double pawl braking system
Sealed guide structure ensure the load chain running safely .
Heat treated and forged alloy steel hooks ensure the hook be out of shape without broken when overloading , making it used in safety.
The height of chain can be adjusted freely
Asbestos free friction disc
1500 cycles lifting test , meet JBT7334,EN13157, ANSI B30.16, AS1418 standards
Parameters:
Model | VA-0.75 | VA-1.5 | VA-3.0 | VA-6.0 | VA-9 | |
Capacity (TON) | 0.75 | 1.5 | 3 | 6 | 9 | |
Standard Lifting Height(M) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
Running test load (KN) | 11.2 | 22.5 | 45 | 75 | 112.5 | |
Effort required to lift max. load (N) | 140 | 220 | 320 | 340 | 360 | |
No. of chain strand | 1 | 1 | 1 | 2 | 3 | |
Load Chain Dia.(MM) | 6 | 8 | 10 | 10 | 10 | |
Net.weight(KG) | 6.45 | 11.2 | 19 | 26 | 46 | |
Extra weight meter of extra lift(kg) | 0.8 | 1.4 | 2.2 | 4.4 | 6.6 | |
Dimensions (MM) | A | 145 | 175 | 195 | 195 | 195 |
B | 86 | 100 | 115 | 115 | 115 | |
C | 134 | 150 | 190 | 242 | 307 | |
D | 38 | 48 | 50 | 65 | 81 | |
H | 340 | 380 | 490 | 620 | 700 | |
L | 285 | 410 | 410 | 410 | 410 | |
K | 27 | 36 | 38 | 48 | 54 | |
| ||||||
