Product Description:

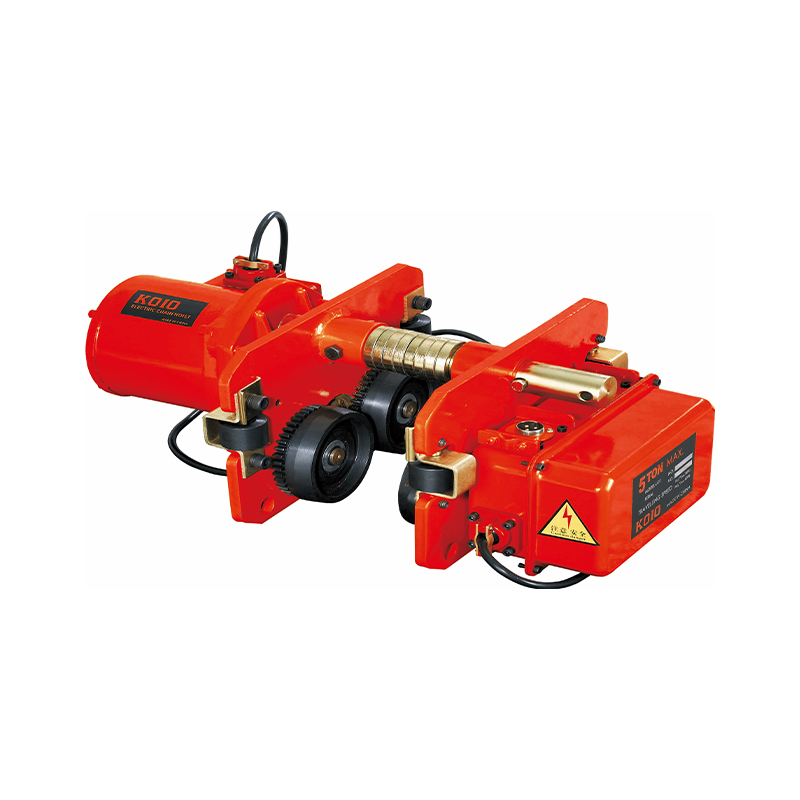

Lifting electric trolleys can be supplied in many different designs and are used to support and mount hoisting equipment for fixed or travelling applications. They are tested with overload and supplied with a test certificate and an operating instructions manual which contains a CE declaration of conformity.
Features :
Trolley is with high strength structural low alloy steel, ensure quadruple security loading, dexterous,safe and easy to install.
1)High quality steel, compact structure, beautiful appearance.
2)International standard. Safe and reliable.
3)Applicable to the H-beam, I-beam.
4)Maximum track width 305 mm.
Parameter:
Electric Trolley for HHBB | |||||||||
Type | Capacity （Ton） | Unit(mm) | Traveling Speed(m/min) | Motor Power(kw) | Minimum radius of turn | I-Beam | |||
A | B | R | T | ||||||
PX-0.5 | 0.5 | 196 | 248 | 142 | 159 | 12 | 0.12 | 0.8 | 70-130 |
PX-01 | 1 | 315 | 212 | 142 | 231 | 11/21 | 0.4 | 0.8 | 80-160 |
PX-02 | 2 | 325 | 220 | 142 | 231 | 11/21 | 0.4 | 0.8 | 82-178 |
PX-03 | 3 | 340 | 250 | 142 | 231 | 11/21 | 0.75 | 1.0 | 100-180 |
PX-05 | 5 | 400 | 291 | 142 | 231 | 11/21 | 0.75 | 1.8 | 110-180 |
PX-7.5 | 7.5 | 400 | 291 | 142 | 231 | 11/21 | 0.75 | 1.8 | 100-178 |
PX-10 | 10 | 500 | 370 | 142 | 231 | 11/21 | 0.75 | 2.5 | 150-220 |
| |||||||||
