Features :
• Steel body cover
• High quality wire rope
• High tensile safety without break
• Motor in copper, and voltage is customized
• It is more safe with 24V pendant control and limit switch
• Asbestos free friction disc and flexible brake system
• Precise and high strength gear system keeps it in low noise
• Protection Grade is IP54
• With emergency stop
• Over heat protecting device can be optional
Parameters:

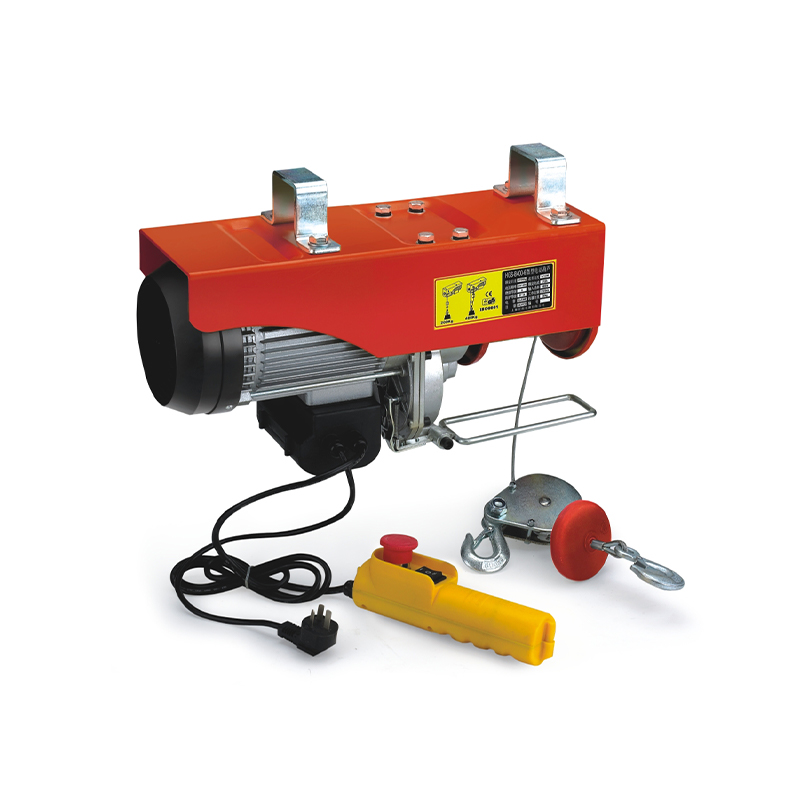

Mini Electric Wire Rope Hoist | |||||||||
Model | Method of Use | Voltage(v) | Power(W) | Capacity(kg) | Lifting speed(m/min) | Lifting Height(m) | Quantity (PCS) | Packing size(cm) | G.W./N.W.（kg） |
PA100/200 | Single-hook/double-hook | 220/230 | 510 | 100/200 | 10/5 | 30/15 | 2 | 38.5*29.5*24 | 22.5/21.5 |
PA125/250 | Single-hook/double-hook | 220/230 | 550 | 125/250 | 10/5 | 30/15 | 2 | 38.5*29.5*24 | 23/22 |
PA150/300 | Single-hook/double-hook | 220/230 | 650 | 150/300 | 10/5 | 30/15 | 2 | 38.5*29.5*24 | 23/22 |
PA200/400 | Single-hook/double-hook | 220/230 | 850 | 200/400 | 10/5 | 30/15 | 2 | 45*32.5*27 | 32/31 |
PA250/500 | Single-hook/double-hook | 220/230 | 1050 | 250/500 | 10/5 | 30/15 | 2 | 45*32.5*27 | 33/32 |
PA300/600 | Single-hook/double-hook | 220/230 | 1150 | 300/600 | 10/5 | 30/15 | 2 | 45*32.5*27 | 34/33 |
PA400/800 | Single-hook/double-hook | 220/230 | 1450 | 400/800 | 10/5 | 30/15 | 2 | 45*32.5*27 | 37.6/36.6 |
PA500/1000 | Single-hook/double-hook | 220/230 | 1800 | 500/1000 | 10/5 | 30/15 | 1 | 56*25*32.5 | 32/30.5 |
PA600/1200 | Single-hook/double-hook | 220/230 | 2100 | 600/1200 | 10/5 | 30/15 | 1 | 56*25*32.5 | 32.5/31 |
