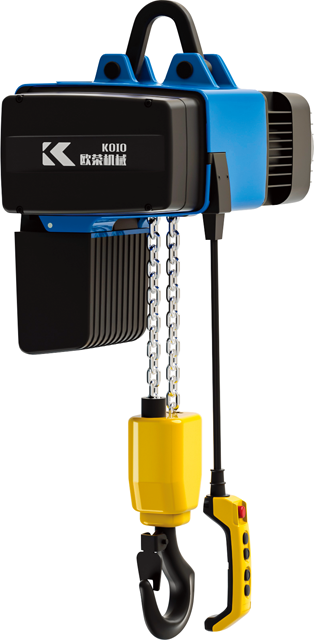

Our ORES electric hoist mainly refers to the design of Demag hoist , which has the advantages of small size and light weight.
Parameters:
Type | Capacity (Kg) | Lifting Height(m) | Lifing Speed (m/min) | Power (Kw) | Rotation speed (r/min) | Phases | Voltage (V) | Frequency (Hz) | Chain Dia. | N.W.(KG) | Size | |||
H | A | B | C | |||||||||||
ORES0.125-01 | 125 | 3 | 2/8 | 0.1/0.4 | 960/2880 | 3 | 380 | 50 | 4.2 | 21 | 390 | 422 | 245 | 268 |
ORES0.2-01 | 200 | 3 | 4/16 | 0.18/0.72 | 960/2880 | 3 | 380 | 50 | 5.3 | 21 | 430 | 468 | 267 | 280 |
ORES0.25-01 | 250 | 3 | 1.5/6 | 0.1/0.4 | 960/2880 | 3 | 380 | 50 | 4.2 | 21 | 390 | 422 | 245 | 268 |
ORES0.5-1 | 500 | 3 | 2/8 | 0.18/0.72 | 960/2880 | 3 | 380 | 50 | 5.3 | 28 | 430 | 468 | 267 | 280 |
ORES01-01 | 1000 | 3 | 2/8 | 0.37/1.5 | 960/2880 | 3 | 380 | 50 | 7.4 | 55 | 580 | 578 | 336 | 349 |
ORES02-02 | 2000 | 3 | 1/4 | 0.37/1.5 | 960/2880 | 3 | 380 | 50 | 7.4 | 63 | 660 | 578 | 336 | 349 |
