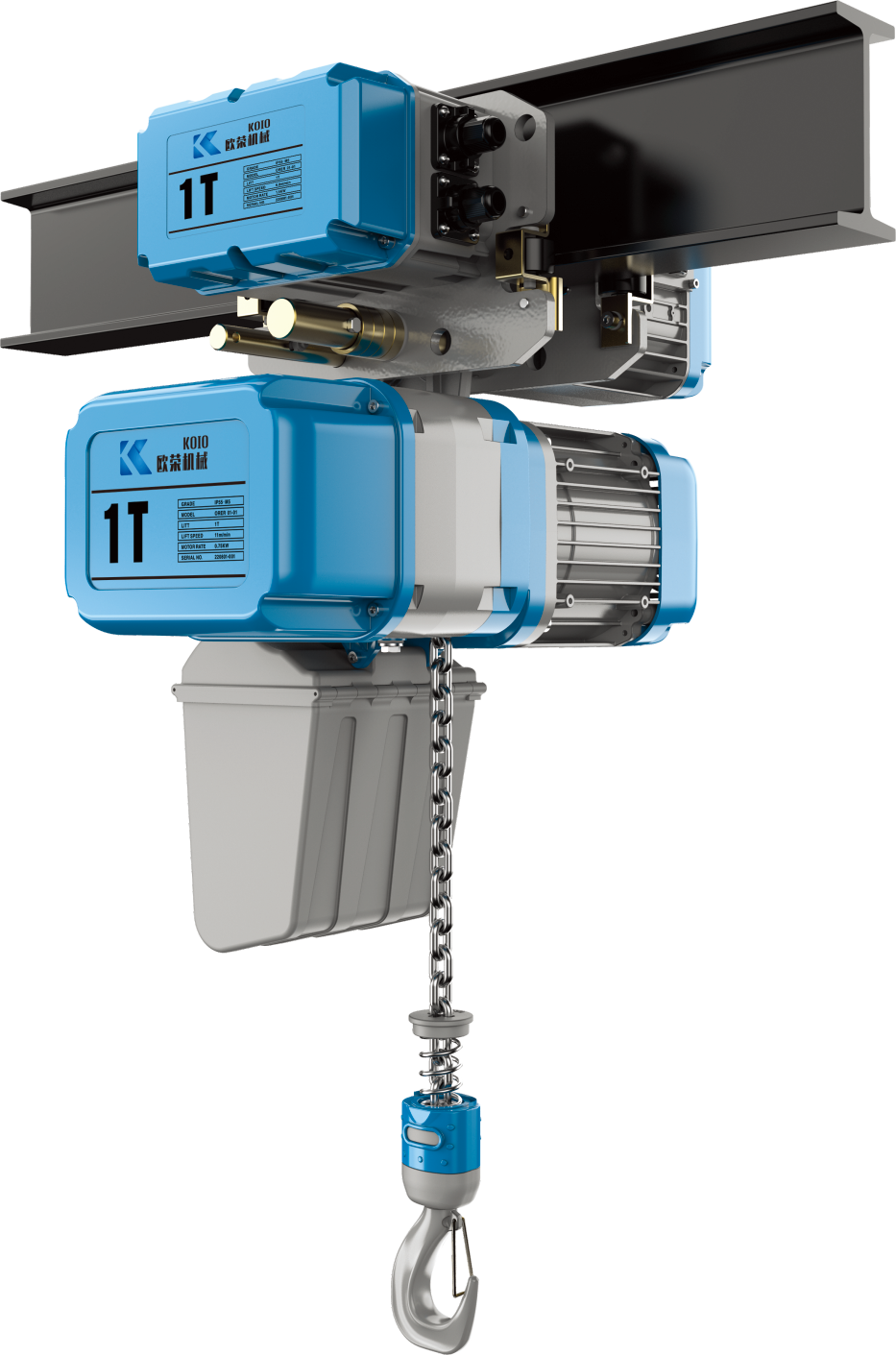

ORER model is an upgrade model of HHBB model, which is a relatively large sales model of our company in recent years. It has the characteristics of light weight and large lifting range (from 1 ton to 50 tons). The ORER model has a lot of commonability with the old HHBB hoist, such as some large capacity of HHBB hoist (7.5 tons or more), can retain most of the original parts, replacing the hoist body can be upgraded to the ORER model.
The ORER model inherits the stability and durability of the HHBB model, while adding safety measures such as safety clutch, electromagnetic brake, and double upper limit. The whole machine has a very high stability.
| Model | Maximum load (Ton) | Rated bad (Ton) | Liftingspeed (m/min) | Motor Power (kw) | Speed (r/min) | RunningSpeed (mmin) | Rotation speed (r/min) | Motor Power (kw) | Motor insulation class | Frequency (Hz) | Power Supply | Control Voltage | NO.of Load Chain | Spec.of Load Chain | Working level | |||||||||
| ORER01-01 | Sing Speed | 1.15t | 1t | 6.7 | 1.5 | 1440 | 11 | 1440 | 0.5 | F | 50 | Ac380v | AC36V | 1 | 7.1x21 | M5 | ||||||||
| Dual Speed | 2.2/6.7 | 0.6/1.5 | 470/1440 | 3.6/11 | 470/1440 | 0.2/0.5 | ||||||||||||||||||
| ORER02-01 | Sing Speed | 2.3t | 2t | 6.7 | 3 | 1440 | 11 | 1440 | 0.5 | F | 50 | Ac380v | AC36V | 1 | 10x30 | M5 | ||||||||
| Dual Speed | 2.2/6.7 | 1.1/3 | 470/1440 | 3.6/11 | 470/1440 | 0.2/0.5 | ||||||||||||||||||
| ORER02-02 | Sing Speed | 2.3t | 2t | 3.3 | 1.5 | 1440 | 11 | 1440 | 0.5 | F | 50 | Ac380v | AC36V | 2 | 7.1x21 | M5 | ||||||||
| Dual Speed | 1/3.3 | 0.6/1.5 | 470/1440 | 3.5/11 | 470/1440 | 0.2/0.5 | ||||||||||||||||||
| ORER03-01 | Sing Speed | 3.5t | 3t | 5.5 | 3 | 1440 | 11 | 1440 | 0.5 | F | 50 | Ac380v | AC36V | 1 | 11.2x34 | M5 | ||||||||
| Dual Speed | 1.8/5.5 | 1.1/3 | 470/1440 | 3.6/11 | 470/1440 | 0.2/0.5 | ||||||||||||||||||
| ORER03-02 | Sing Speed | 3.5t | 3t | 3.3 | 3 | 1440 | 11 | 1440 | 0.5 | F | 50 | Ac380v | AC36V | 2 | 10x30 | M5 | ||||||||
| Dual Speed | 1/3.3 | 1.1/3 | 470/1440 | 3.5/11 | 470/1440 | 0.2/0.5 | ||||||||||||||||||
| ORER03-03 | Sing Speed | 3.5t | 3t | 2.2 | 1.5 | 1440 | 11 | 1440 | 0.75 | F | 50 | Ac380v | AC36V | 3 | 7.1x21 | M5 | ||||||||
| Dual Speed | 0.7/2.2 | 0.6/1.5 | 470/1440 | 3.6/11 | 470/1440 | 0.3/0.75 | ||||||||||||||||||
| ORER05-02 | Sing Speed | 5.8t | 5t | 2.7 | 3 | 1440 | 17 | 1440 | 0.75 | F | 50 | Ac380v | AC36V | 2 | 11.2x34 | M5 | ||||||||
| Dual Speed | 0.8/2.7 | 1.1/3 | 470/1440 | 3.5/11 | 470/1440 | 0.3/0.75 | ||||||||||||||||||
| ORER7.5-03 | Sing Speed | 8.5t | 7.5t | 1.8 | 3 | 1440 | 11 | 1440 | 0.75 | F | 50 | Ac380v | AC36V | 3 | 11.2x34 | M5 | ||||||||
| Dual Speed | 0.5/1.8 | 1.1/3 | 470/1440 | 3.6/11 | 470/1440 | 0.3/0.75 | ||||||||||||||||||
| ORER10-04 | Sing Speed | 11t | 10t | 2.7 | 3 | 1440 | 11 | 1440 | 0.75 | F | 50 | Ac380v | AC36V | 4 | 11.2x34 | M5 | ||||||||
| Dual Speed | 0.8/2.7 | 1.1/3 | 470/1440 | 3.5/11 | 470/1440 | 0.3/0.75 | ||||||||||||||||||
| ORER15-06 | Sing Speed | 17t | 15t | 1.8 | 3+3 | 1440 | 11 | 1440 | 0.75+0.75 | F | 50 | Ac380v | AC36V | 6 | 11.2x34 | M5 | ||||||||
| Dual Speed | 0.5/1.8 | 1.1/3+11/3 | 470/1440 | 3.6/11 | 470/1440 | 0,3/0.75 0.376.75 | ||||||||||||||||||
