Features:
1.Thickened Seamless Steel Pipe: The machine is welded with thickened and reinforced seamless steel pipe, stable and durable, has advantages of strong bearing capacity
2.100% Copper Motor: the core wire is 100% copper, the copper wire is tightly wound with high melting point and fast heat dissipation,it has long service life
3.Double Bearing: Use reinforced ball pressure double bearing design, 360 degrees turning free, convenient and strength-saving
Parameters:

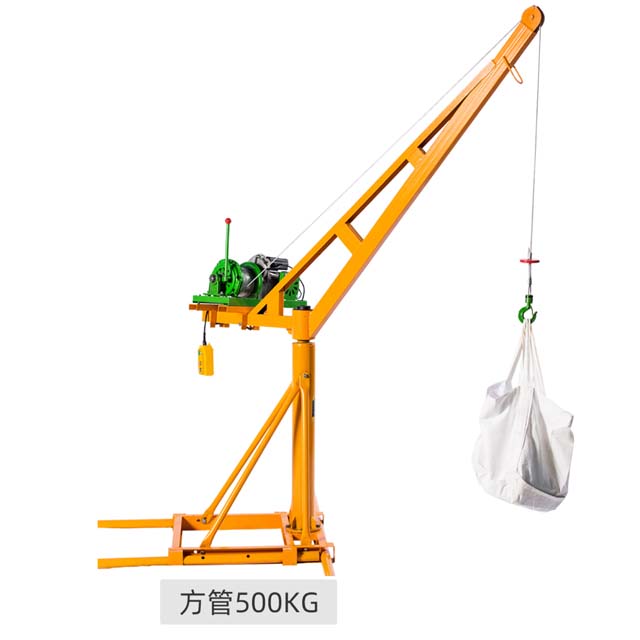

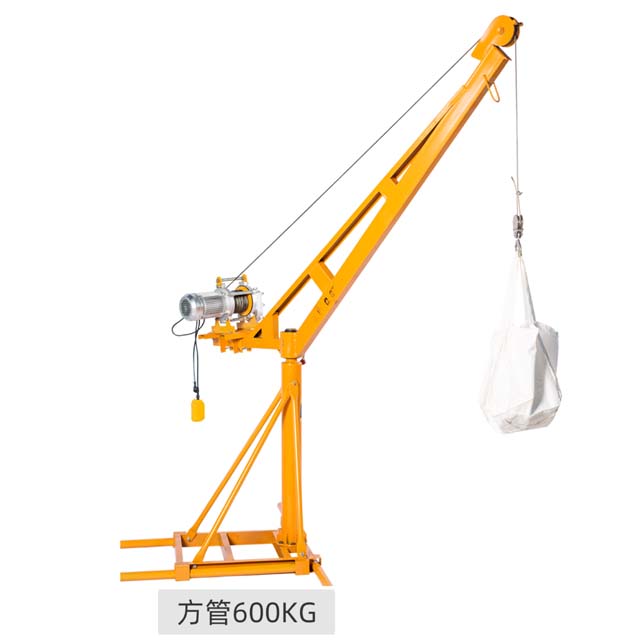

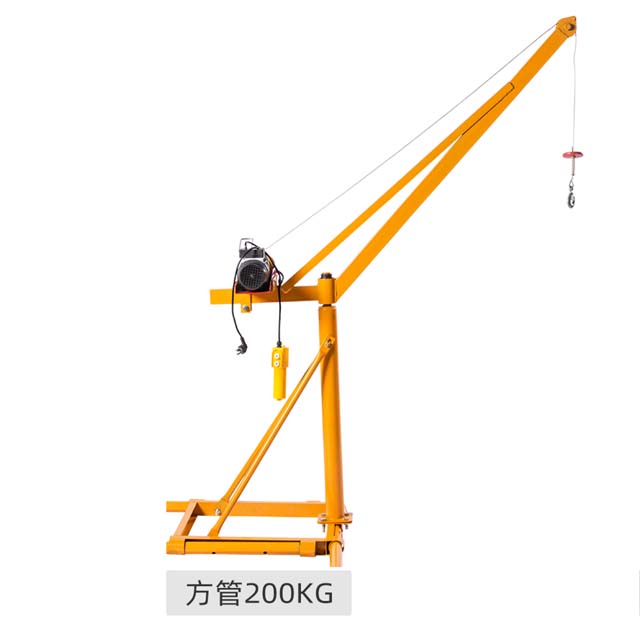

| Specification | 200KG | 400KG | 500KG | 500KG (Adjustable) | 600KG | 800KG |
| Lifting weight (kg) | 200 | 400 | 500 | 500 | 600 | 800 |
| Rated Capacity(V) | 220 | 220 | 220/380 | 220/380 | 220/380 | 220/380 |
| Rated Power(KW) | 1.0 | 1.3/1 .8/3.0 | 1.6/2.2/3.0 | 1.6/2.2/3.0 | 3.0 | 3.0/4.0 |
| Rope Length(m) | 12-30 | 12-30/30-100 | 12-30/30-100 | 12-30/30-100 | 30-100 | 30-100 |
| Rope Dia(mm) | 4 | 5/6 | 6 | 6 | 6 | 7 |
| Lifting Speed(m/min) | 12 | 12/1 5 | 12/1 5 | 12/1 5 | 15 | 15 |
| Total Height(m) | 1.96 | 2.2 | 2.5 | 2.6 | 2.7 | 2.45 |
| Column Height(m) | 0.92 | 1.0 | 1.0 | 1.0 | 1.0 | 0.65 |
| Arm Length(m) | 1.76 | 2.1 | 2.35 | 1.0-1.5 | 2.6 | 2.6 |
| Arm height(m) | 1.04 | 1.2 | 1.0 | 1.0 | 1.6 | 1.8 |
| Radius of Rotation(m) | 0.95 | 1.1 | 1.3 | 0.9-1.5 | 1.7 | 1 .45 |
| Base Size(m) | 0.6*0.45 | 0.7*0.65 | 0.7*0.7 | 0.7*0.7 | 0.7*0.72 | 0.65*0.86 |
| Optional Winch | mini hoist | mini hoist, winch with clutch, aluminum winch | mini hoist, winch with clutch, aluminum winch | |||
| Crane Weight(kg) | 30 | 48 | 62 | 65 | 70 | 85 |
