Features:
1.Thickened Seamless Steel Pipe: The machine is welded with thickened and reinforced seamless steel pipe, stable and durable, has advantages of strong bearing capacity
2.100% Copper Motor: the core wire is 100% copper, the copper wire is tightly wound with high melting point and fast heat dissipation,it has long service life
3.Double Bearing: Use reinforced ball pressure double bearing design, 360 degrees turning free, convenient and strength-saving
Parameters:

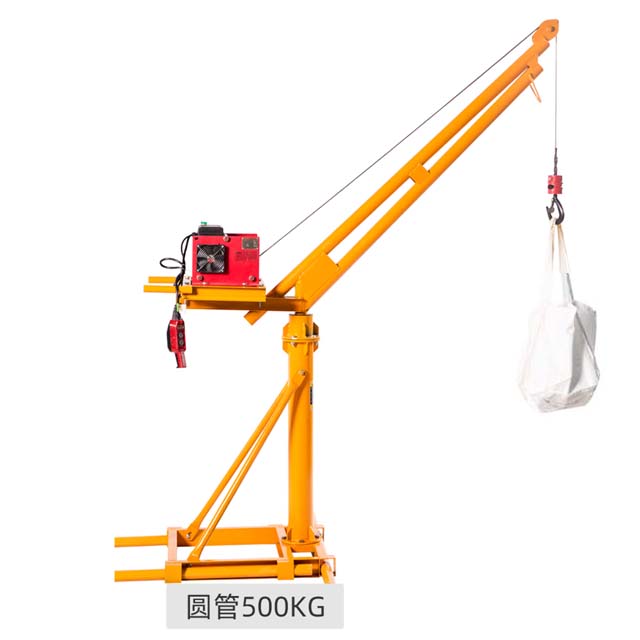

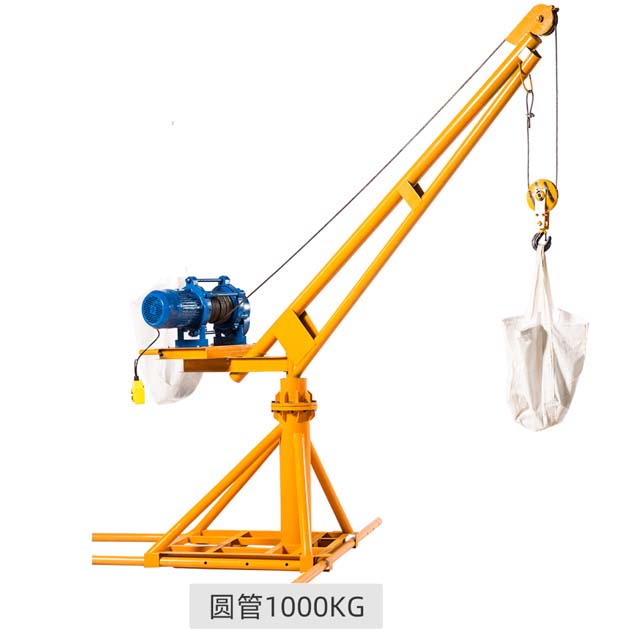

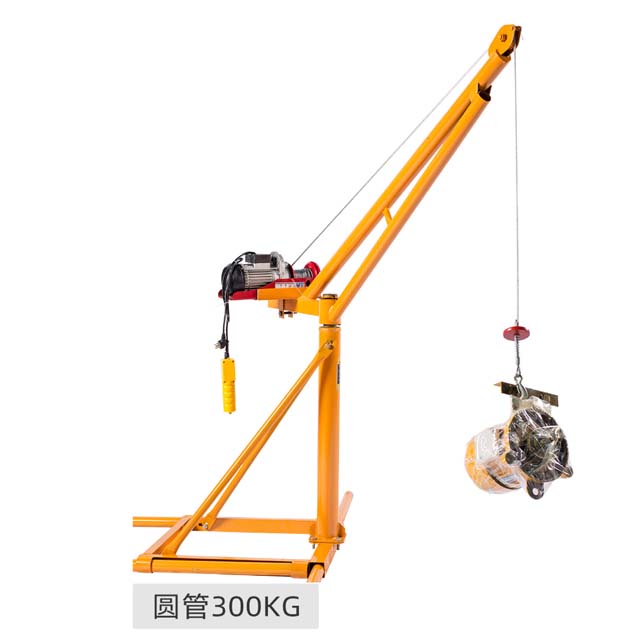

| Specification | 300KG | 500KG | 500KG | 800KG | 1000KG | 2000KG |
| Lifting weight (kg) | 300 | 500 | 500 | 800 | 1000 | 2000 |
| Rated Capacity(V) | 220 | 220/380 | 220/380 | 220/380 | 220/380 | 380 |
| Rated Power(KW) | 1.05 | 1.6/2.2/3.0 | 1.6/2.2/3.0 | 4.0 | 1.5/3.0 | 3.0/4.5/7.5 |
| Rope Length(m) | 12-30 | 12-30/30-100 | 12-30/30-100 | 12-30/30-100 | 30-100 | 30-100 |
| Rope Dia(mm) | 4.5 | 6 | 6 | 7 | 7/7.7/11 | 11/13-15 |
| Lifting Speed(m/min) | 12 | 12/15 | 12/15 | 15 | 15/16 | 16 |
| Total Height(m) | 1.99 | 2.2 | 2.5 | 2.6 | 2.6 | 2.6 |
| Column Height(m) | 0.92 | 0.8 | 1.1 | 0.95 | 0.95 | 0.9 |
| Arm Length(m) | 1.85 | 2.2 | 2.2 | 2.9 | 2.9 | 3.0 |
| Arm height(m) | 1.07 | 1 .4 | 1 .4 | 1.65 | 1.65 | 1.7 |
| Radius of Rotation(m) | 1.2 | 1.1 | 1 .1 | 1.6 | 1.7 | 1.5 |
| Base Size(m) | 0.67*0.45 | 0.65*0.6 | 0.65*0.4 | 0.84*0.5 | 0.92*0.35 | 0.9*0.9 |
| Optional Winch | mini hoist | mini hoist, winch with clutch, aluminum winch | aluminum winch | 380V electric winch | ||
| Crane Weight(kg) | 33 | 48 | 50 | 93 | 122 | 350 |
