Features:
• The structure is integrated , the overall structure for hoist and trolley to save space
• The distance between machine and beam track is shortened , can make the lifting height be higher
• It is especially suitable for the place where the plant height is restricted
Parameters:

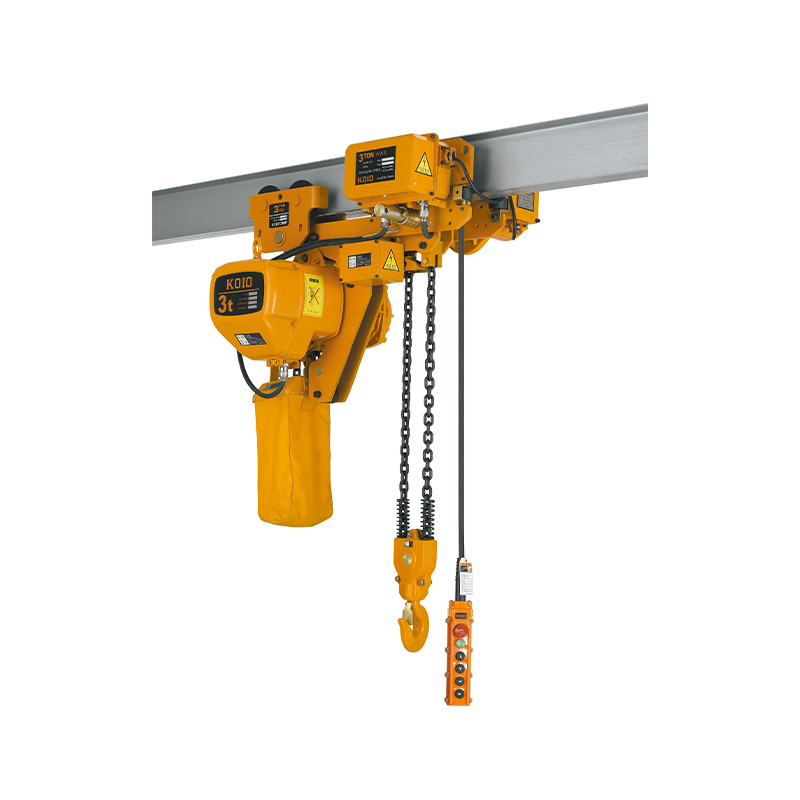

Low Headroom Electric Chain Hoist | ||||||||||||||
Techinical Parameters | ||||||||||||||
Type | Capacity （Tom） | Lifting Height(m) | Lifting Speed （m/min） | Power （kw） | Rotation speed （r/min） | Phases | Voltage （V） | Frequency （Hz） | Traveling Speed(m/min) | Traveling Power(kw) | I-Beam （mm） | Chain Dia. | ||
HHBB0.5-01 | 0.5 | 3 | 7.2 | 1.1 | 1440 | 3 | 220-440 | 50/60 | 12 | 0.12 | 100-180 | ￠ 6.3 | ||
HHBB01-01 | 1 | 3 | 6.8 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 11/21 | 0.4 | 100-160 | ￠ 7.1 | ||
HHBB01-02 | 1 | 3 | 3.6 | 1.1 | 1440 | 3 | 220-440 | 50/60 | 11/21 | 0.4 | 100-160 | ￠ 6.3 | ||
HHBB02-01 | 2 | 3 | 6.6 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 11/21 | 0.4 | 100-160 | ￠ 10.0 | ||
HHBB02-02 | 2 | 3 | 3.4 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 11/21 | 0.4 | 120-160 | ￠ 7.1 | ||
HHBB03-01 | 3 | 3 | 5.6 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 11/21 | 0.75 | 120-180 | ￠ 11.2 | ||
HHBB03-02 | 3 | 3 | 3.3 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 11/21 | 0.75 | 120-180 | ￠ 10.0 | ||
HHBB05-02 | 5 | 3 | 2.8 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 11/21 | 0.75 | 110-180 | ￠ 11.2 | ||
HHBB7.5-03 | 7.5 | 3 | 1.8 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 11/21 | 0.75 | 120-180 | ￠ 11.2 | ||
HHBB10-04 | 10 | 3 | 2.8 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 11/21 | 0.75*2 | 120-180 | ￠ 11.2 | ||
HHBB20-08 | 20 | 3 | 1.4 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 11/21 | 0.75*2 | 130-180 | ￠ 11.2 | ||
| ||||||||||||||
Size Specification | ||||||||||||||
Type | Capacity （Ton） | Unit(mm) | ||||||||||||
H | A | B | K | L | M | N | I | J | P | Q | R | T | ||
HHBB0.5-01 | 0.5 | 350 | 460 | 230 | ￠32 | 25 | 50 | 17 | ￠31 | ￠31 | 595 | 410 | 142 | 231 |
HHBB01-01 | 1 | 480 | 520 | 260 | ￠40 | 31 | 56 | 24 | ￠31 | ￠31 | 635 | 450 | 142 | 231 |
HHBB01-02 | 1 | 410 | 460 | 230 | ￠40 | 31 | 50 | 24 | ￠31 | ￠31 | 595 | 410 | 142 | 231 |
HHBB02-01 | 2 | 570 | 620 | 310 | ￠49 | 35 | 62 | 30 | ￠36 | ￠36 | 727 | 512 | 142 | 231 |
HHBB02-02 | 2 | 535 | 520 | 260 | ￠49 | 42 | 56 | 30 | ￠31 | ￠31 | 635 | 450 | 142 | 231 |
HHBB03-01 | 3 | 640 | 620 | 310 | ￠59 | 42 | 74 | 35 | ￠43 | ￠43 | 779 | 530 | 142 | 231 |
HHBB03-02 | 3 | 685 | 620 | 310 | ￠59 | 42 | 62 | 35 | ￠43 | ￠43 | 750 | 505 | 142 | 231 |
HHBB05-02 | 5 | 740 | 620 | 310 | ￠60 | 45 | 77 | 43 | ￠43 | ￠54 | 820 | 530 | 142 | 231 |
HHBB7.5-03 | 7.5 | 900 | 620 | 310 | ￠90 | 65 | 77 | 50 | ￠43 | ￠54 | 1024 | 740 | 142 | 231 |
HHBB10-04 | 10 | 880 | 630 | 315 | ￠90 | 65 | 77 | 50 | ￠54 | ￠54 | 926 | 613 | 142 | 231 |
HHBB20-08 | 20 | 1080 | 630 | 315 | ￠110 | 80 | 80 | 85 | ￠70 | ￠70 | 960 | 600 | 142 | 231 |
