Features :
*Sheel:

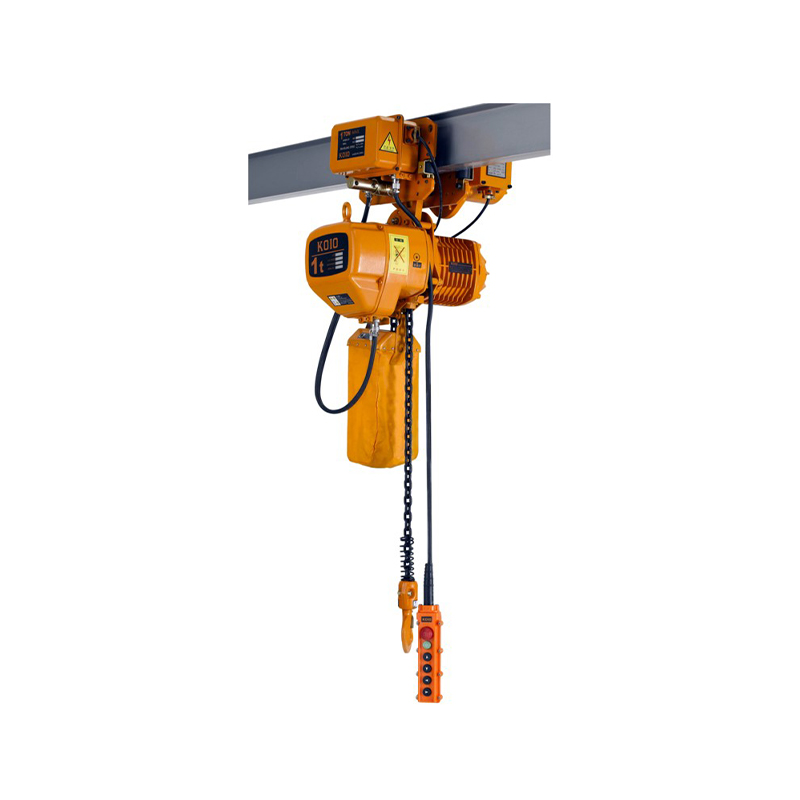

1. The KOIO Electric Chain Hoist is made of light aluminum alloy shell, light but hard.
2. With cooling fin, easy and quick Bring the Heat out.* Break System:
1. Side Magnetic Braking Device, Ensure lock the hoist
2. Mechanical braker, Dual braking system, much more safety.
* Limit Switch:
With up & down Limit Switch, to prohibit the chains from exceeding for safety.
* Chain:
FEC G80 Chain, Origina imported from Japan. Anti-Rust and Anti-corrosion
* Electromagnetic contactor:
1. With Schneider Electric (TESSIC), can be used safely under high frequency.
2. Can be installed Variable-Vrequency Drive (VFD Electric) Can be suitable for Singlle Phase Power supply.
* Inverse phase sequence protecting device:
It is sepcial electrical installation which controls the circuit not to work in case of wiring error in the power supply.
* Gear:
The gear made of alloy steel, Through the heat treatment.
* Level of Protection Grade(IP Grade):
1. Hoist IP Grade: IP54
2. Push Buttom IP Grade: IP65
* Power supply:
All kinds of voltage can be custom-made. 200V-660V, 50HZ/60HZ, 1P/3P
* Working Grade:
M4/1Am
Parameters:
HHBB Electric chain hoist with electric trolley (Single Speed/Double Speed) | ||||||||||||||
Techinical Parameters | ||||||||||||||
Type | Capacity （Tom） | Lifting Height(m) | Lifting Speed （m/min） | Power （kw） | Rotation speed （r/min） | Phases | Voltage （V） | Frequency （Hz） | Traveling Speed(m/min) | Traveling Power(kw) | I-Beam （mm） | Chain Dia. | ||
HHBB0.5-01 | 0.5 | 3 | 7.2, 7.2/2.4 | 1.1, 1.1/0.37 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 12,12 | 0.12 | 70-130 | ￠ 6.3 | ||
HHBB01-01 | 1 | 3 | 6.8, 6.9/2.3 | 1.5, 1.5/0.6 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.4 | 80-160 | ￠ 7.1 | ||
HHBB01-02 | 1 | 3 | 3.6, 3.6/1.2 | 1.1, 1.1/0.37 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.4 | 80-160 | ￠ 6.3 | ||
HHBB02-01 | 2 | 3 | 6.6, 6.6/2.2 | 3.0, 3.0/1.0 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.4 | 82-178 | ￠ 10.0 | ||
HHBB02-02 | 2 | 3 | 3.4,3.3/1.1 | 1.5, 1.5/0.6 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.4 | 82-178 | ￠ 7.1 | ||
HHBB03-01 | 3 | 3 | 5.6, 5.7/1.8 | 3.0, 3.0/1.0 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.75 | 100-180 | ￠ 11.2 | ||
HHBB03-02 | 3 | 3 | 3.3, 3.3/1.1 | 3.0, 3.0/1.0 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.75 | 100-180 | ￠ 10.0 | ||
HHBB03-03 | 3 | 3 | 2.2, 2.3/0.8 | 1.5, 1.5/0.6 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.75 | 100-180 | ￠ 7.1 | ||
HHBB05-02 | 5 | 3 | 2.8, 2.8/0.9 | 3.0, 3.0/1.0 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.75 | 110-180 | ￠ 11.2 | ||
HHBB7.5-03 | 7.5 | 3 | 1.8, 1.8/0.6 | 3.0, 3.0/1.0 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.75 | 120-180 | ￠ 11.2 | ||
HHBB10-04 | 10 | 3 | 2.8, 2.8/0.9 | 3.0*2, 3.0/1.0*2 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.75*2 | 150-220 | ￠ 11.2 | ||
HHBB15-06 | 15 | 3 | 1.8, 1.8/0.6 | 3.0*2, 3.0/1.0*2 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.75*2 | 150-220 | ￠ 11.2 | ||
HHBB20-08 | 20 | 3 | 1.4, 1.4/0.5 | 3.0*2, 3.0/1.0*2 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.75*2 | 150-220 | ￠ 11.2 | ||
HHBB25-10 | 25 | 3 | 1.1, 1.1/0.4 | 3.0*2, 3.0/1.0*2 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.75*2 | 150-220 | ￠ 11.2 | ||
HHBB30-12 | 30 | 3 | 0.9, 0.9/0.3 | 3.0*2, 3.0/1.0*2 | 1440, 980/2830 | 3 | 220-440 | 50/60 | 11/21,5/11,5/21 | 0.75*2 | 150-220 | ￠ 11.2 | ||
| ||||||||||||||
| Size Specification | ||||||||||||||
Type | Capacity （Ton） | Unit(mm) | ||||||||||||
H | A | B | D | E | I | J | P | K | L | N | R | T | ||
HHBB0.5-01 | 0.5 | 630 | 460 | 230 | 280 | 160 | ￠31 | 100 | 162 | ￠32 | 25 | 17 | 142 | 150 |
HHBB01-01 | 1 | 650 | 520 | 260 | 300 | 176 | ￠31 | 111 | 206 | ￠40 | 31 | 24 | 142 | 231 |
HHBB01-02 | 1 | 640 | 460 | 230 | 280 | 205 | ￠31 | 111 | 206 | ￠40 | 31 | 24 | 142 | 231 |
HHBB02-01 | 2 | 770 | 620 | 310 | 430 | 265 | ￠36 | 127 | 237 | ￠49 | 36 | 30 | 142 | 231 |
HHBB02-02 | 2 | 740 | 520 | 260 | 300 | 230 | ￠36 | 127 | 237 | ￠49 | 35 | 30 | 142 | 231 |
HHBB03-01 | 3 | 840 | 620 | 310 | 430 | 265 | ￠43 | 140 | 265 | ￠59 | 42 | 35 | 142 | 231 |
HHBB03-02 | 3 | 940 | 620 | 310 | 430 | 320 | ￠43 | 140 | 265 | ￠59 | 42 | 35 | 142 | 231 |
HHBB03-03 | 3 | 920 | 520 | 260 | 350 | 280 | ￠43 | 140 | 265 | ￠59 | 42 | 35 | 142 | 231 |
HHBB05-02 | 5 | 1015 | 620 | 310 | 430 | 325 | ￠54 | 156 | 296 | ￠60 | 45 | 43 | 142 | 231 |
HHBB7.5-03 | 7.5 | 1200 | 620 | 310 | 500 | 300 | ￠54 | 191 | 366 | ￠90 | 65 | 50 | 142 | 231 |
HHBB10-04 | 10 | 1200 | 630 | 315 | 860 | 430 | ￠54 | 430 | 726 | ￠90 | 65 | 50 | 142 | 231 |
HHBB15-06 | 15 | 1310 | 630 | 315 | 1070 | 590 | ￠70 | 520 | 886 | ￠110 | 80 | 85 | 142 | 231 |
HHBB20-08 | 20 | 1470 | 630 | 315 | 1260 | 630 | ￠70 | 520 | 886 | ￠110 | 80 | 85 | 142 | 231 |
HHBB25-10 | 25 | 1580 | 630 | 315 | 1450 | 725 | ￠75 | 680 | 1080 | ￠140 | 100 | 95 | 142 | 231 |
HHBB30-12 | 30 | 1640 | 860 | 430 | 1380 | 630 | ￠70 | 520 | 886 | ￠110 | 80 | 85 | 142 | 231 |
