Features:
1. To be used together with manual hoist or electric hoist , easy to move with load
2. It has excellent performance due to wheels with pre-lubricated and ball bearings.
3. Adjustable to fit a wide range of beam width
4. Galvanized hand chain has much better anti-corrosion
Parameter:

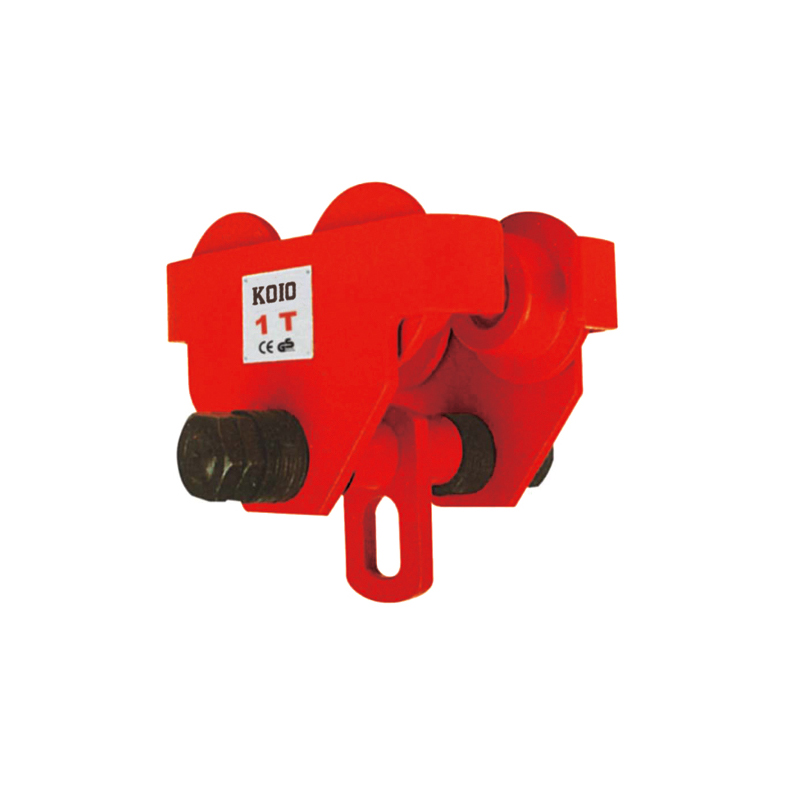

Plain Trolley (GCT619) | |||||||
Capacity | I- Beam Width | Min.turning radius | Weight | A | B | C | H |
0.5 | 68-126 | 0.9 | 6 | 208 | 212 | 190 | 108 |
1.0 | 80-146 | 1.0 | 9.5 | 246 | 239 | 214 | 120 |
2.0 | 80-168 | 1.1 | 14.6 | 280 | 270 | 248 | 145 |
3.0 | 80-168 | 1.3 | 24 | 300 | 319 | 323 | 200 |
5.0 | 100-170 | 1.4 | 36 | 316 | 346 | 357 | 210 |
10 | 122-203 | 1.7 | 83 | 343 | 475 | 400 | 230 |
20 | 136-203 | 5.0 | 235 | 475 | 642 | 622 | 315 |
Features:
1. To be used together with manual hoist or electric hoist , easy to move with load
2. It has excellent performance due to wheels with pre-lubricated and ball bearings.
3. Adjustable to fit a wide range of beam width
4. Galvanized hand chain has much better anti-corrosion
Parameter:
Plain Trolley (GCT619) | |||||||
Capacity | I- Beam Width | Min.turning radius | Weight | A | B | C | H |
0.5 | 68-126 | 0.9 | 6 | 208 | 212 | 190 | 108 |
1.0 | 80-146 | 1.0 | 9.5 | 246 | 239 | 214 | 120 |
2.0 | 80-168 | 1.1 | 14.6 | 280 | 270 | 248 | 145 |
3.0 | 80-168 | 1.3 | 24 | 300 | 319 | 323 | 200 |
5.0 | 100-170 | 1.4 | 36 | 316 | 346 | 357 | 210 |
10 | 122-203 | 1.7 | 83 | 343 | 475 | 400 | 230 |
20 | 136-203 | 5.0 | 235 | 475 | 642 | 622 | 315 |
