Features:
1. To be used together with manual hoist or electric hoist , easy to move with load
2. It has excellent performance due to wheels with pre-lubricated and ball bearings.
3. Adjustable to fit a wide range of beam width
4. Galvanized hand chain has much better anti-corrosion
Parameter:

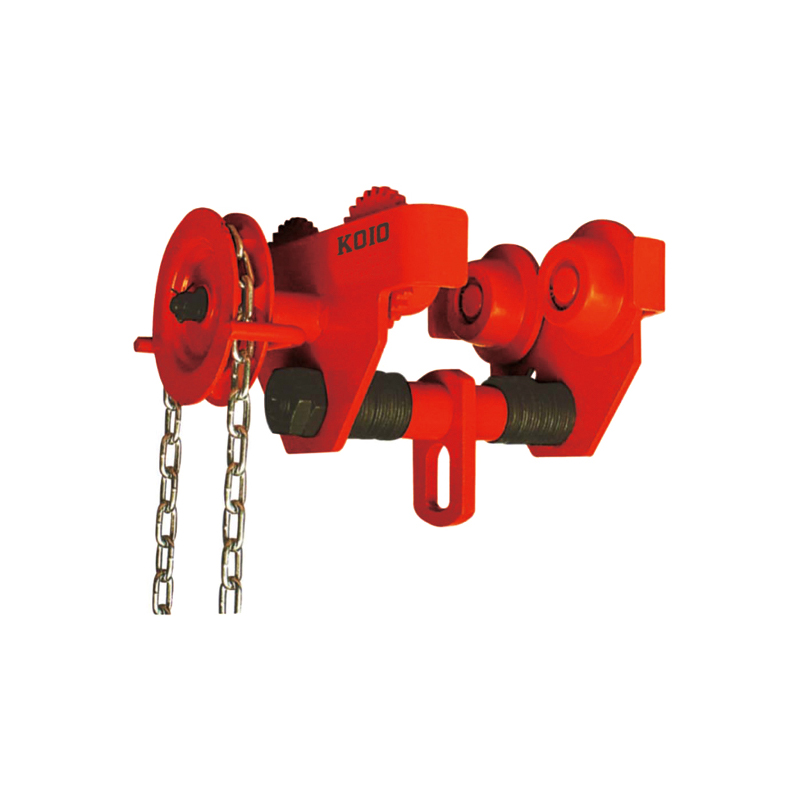

Geared Trolley (GCL619) | |||||||
Capacity | I- Beam Width | Min.turning radius | Weight | A | B | C | H |
0.5 | 68-126 | 0.9 | 10 | 280 | 212 | 190 | 108 |
1.0 | 80-146 | 1.0 | 13.5 | 280 | 239 | 214 | 120 |
2.0 | 80-168 | 1.1 | 19 | 310 | 270 | 248 | 145 |
3.0 | 88-168 | 1.3 | 29 | 365 | 319 | 323 | 200 |
5.0 | 100-170 | 1.4 | 40 | 400 | 346 | 357 | 210 |
10 | 122-203 | 1.7 | 90 | 400 | 475 | 400 | 230 |
20 | 122-203 | 5.0 | 215 | 475 | 798 | 575 | 300 |
