Feature:

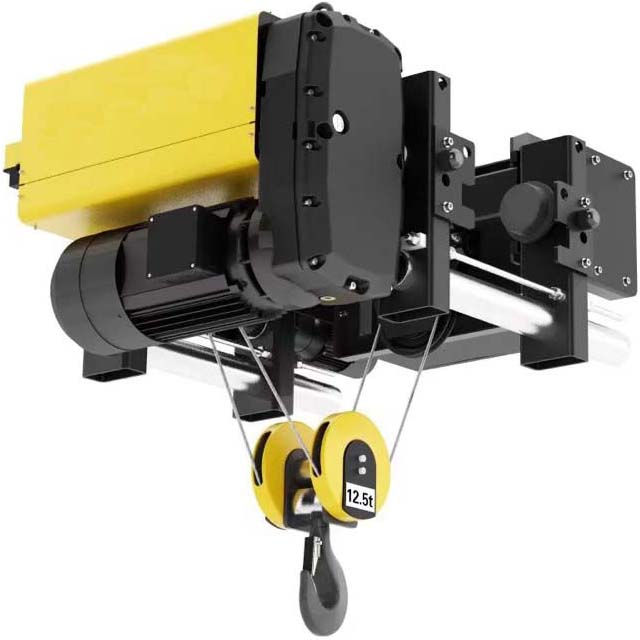

1. Low headroom design, compact, strong, long service life span, save your space.
2. Three-in-one lifting motor: AMB Germany original imported. Column rotor, low noise.
3. Limit Switch: Cam limit model operate safety.
4. With load limiter protection.
5. Remote control avaliable.
Parameter：
| Capacity (ton) | Lifting height (m) | Lifting speed (m/min) | Lifting motor (kw) | Travel Speed(m/min) | Travel Motor(kw) | Lifting System | Travel System | H(mm) | C(mm) | I-Beam B(mm) | ||
| FEM | ISO | FEM | ISO | |||||||||
| 2t | 6/9/12/15/18 | 5/0.8 | 3.2/0.45 | 20/5 | 0.37 | 3M | M6 | 2M | M5 | 210 | 556 | 150-300 |
| 3.2t | 6/9/12/15/18 | 5/0.8 | 3.2/0.45 | 20/5 | 0.37 | 3M | M5 | 2M | M5 | 210 | 556 | 150-300 |
| 5t | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 20/5 | 0.37 | 2M | M5 | 2M | M5 | 260 | 596 | 200-350 |
| 6.3t | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 20/5 | 0.37 | 1Am | M4 | 2M | M5 | 260 | 596 | 200-350 |
| 8t | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 20/5 | 0.75 | 3M | M6 | 2M | M5 | 325 | 750 | 200-410 |
| 10t | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 20/5 | 0.75 | 2M | M5 | 2M | M5 | 325 | 750 | 200-410 |
| 12.5t | 6/9/12/15/18 | 5/0.8 | 12.5/2 | 20/5 | 0.75 | 1Am | M4 | 2M | M5 | 325 | 750 | 200-410 |
| 16t | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 20/5 | 0.75*2 | 2M | M5 | 2M | M5 | 400 | 920 | 300-450 |
| 20t | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 20/5 | 0.75*2 | 1Am | M4 | 2M | M5 | 400 | 920 | 350-450 |
