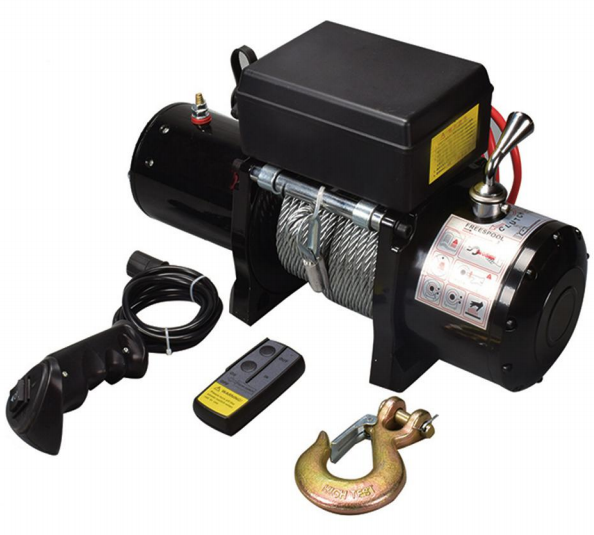

1.Convenient,portable power for pulling boats,stuck vehicles and other heavy item.
2.Powerful 2000lbs—20000lbs pulling power.
3.12Volt powered for convenient use without extension cords or small gas engines.
4.Portable,with built-in carrying handle and quick-attach mounting plate.
| Model | Horizontal Traction(kg) | Vertical Lifting(kg) | Output Voltage | Power without load(kw) | Transmission Ratio | Wire Rope (Dia.xL) | Size (LxWxH) mm | Reel Size (Dia.xL) mm | Weight (kg) | Packing Size (LxWxH) cm |
| 2000LB | 900 | 200 | 12V/24V | 0.4 | 136:1 | 4mmx6m | 268x110x105 | 3.15x72 | 5.80 | 33x24x15 |
| 3000LB | 1300 | 300 | 12V/24V | 0.55 | 136:1 | 5mmx6m | 299x110x105 | 31.5x72 | 6.15 | 33x24x15 |
| 3500LB | 1500 | 350 | 12V/24V | 0.6 | 136:1 | 5mmx10m | 320x110x105 | 31.5x72 | 8.15 | 40x31x16 |
| 4000LB | 1800 | 400 | 12V/24V | 0.8 | 136:1 | 5mmx10m | 343x110x112 | 49.5x72 | 9.20 | 40x31x16 |
| 4500LB | 2000 | 450 | 12V/24V | 0.9 | 136:1 | 5mmx10m | 363x110x112 | 49.5x72 | 9.55 | 40x31x16 |
| 6000LB | 2700 | 500 | 12V/24V | 1.5 | 265:1 | 7mmx14m | 340x160x217 | 63x135 | 23.80 | 55x25x32 |
| 9500LB | 4300 | 600 | 12V/24V | 1.9 | 265:1 | 9mmx24m | 529x160x217 | 63x220 | 36.15 | 58x32x29.5 |
| 12000LB | 5400 | 750 | 12V/24V | 2.0 | 265:1 | 9mmx24m | 529x160x217 | 63x220 | 37.25 | 58x32x29.5 |
| 13500LB | 6000 | 800 | 12V/24V | 2.2 | 265:1 | 9mmx24m | 529x160x217 | 63x220 | 37.25 | 58x32x29.5 |
| 20000LB | 9000 | 1000 | 12V/24V | 2.8 | 358:1 | 1lmmx24m | 560x196x260 | 88x215 | 52.00 | 63x31x23 |
