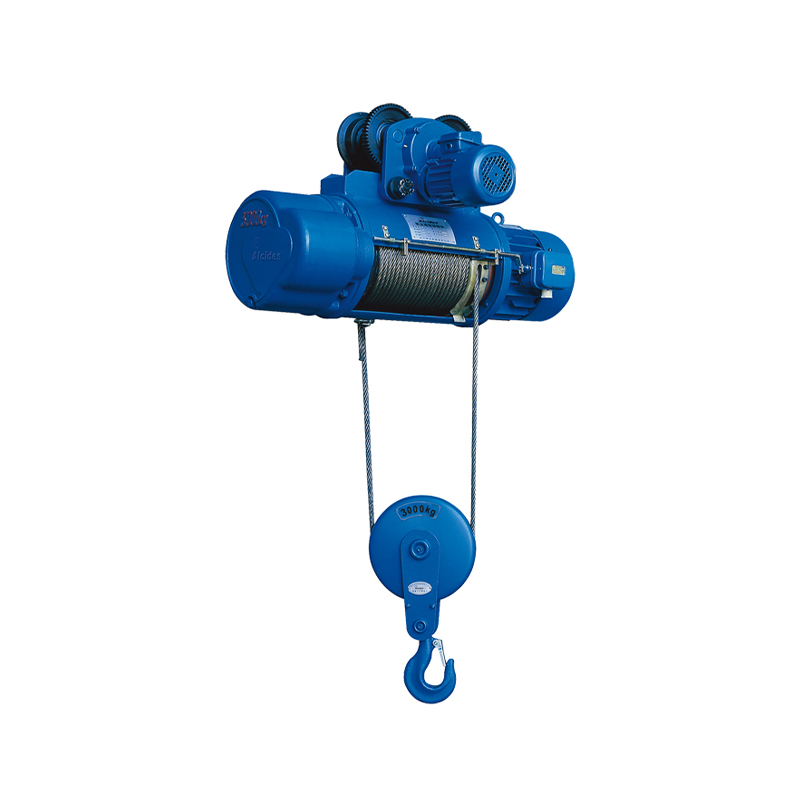

CD1, MD1 Electric Wire Hoist is a small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes.
■ With slight modification, it can also be used as a winch.
■ It is widely used in factories, mines, harbours, warehoused, cargo
Storage areas and shops, essential in raising working efficiency and
improving working conditions.
■ Model CD1 Electric Hoist has only normal speed, which can satisfy
Normal application.
■ Model MD1 Electric Hoist provides two speeds: normal speed and low
speed. At a low speed, it can do preciseloading and unloading,
mounding of sand box, maintenance of machine tools, etc.
Parameters:
Model | CD1,MD1 | |||||||||||||||||||||||||||||||
Capacity（ton） | 0.5 | 1 | 2 | 3 | 5 | 10 | ||||||||||||||||||||||||||
Working Level | M3 | M3 | M3 | M3 | M3 | M3 | ||||||||||||||||||||||||||
Lifting Height(m) | 6 | 9 | 12 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 9 | 12 | 18 | 24 | 30 |
Lifting Speed(m/min) | 8, 8/0.8 | 8, 8/0.8 | 8, 8/0.8 | 8, 8/0.8 | 8, 8/0.8 | 7, 7/0.7 | ||||||||||||||||||||||||||
Running Speed(m/min) | 20 | 20 | 20 | 20 | 20 | 20 | ||||||||||||||||||||||||||
Power of Lifting motor Type (KW) | 0.8, 0.8/0.2 | 1.5, 1.5/0.2 | 3, 3/0.4 | 4.5, 4.5/0.4 | 7.5, 7.5/0.8 | 13, 13/1.5 | ||||||||||||||||||||||||||
Power of Running motor Type (KW） | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8X2 | ||||||||||||||||||||||||||
Level of Protection | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | ||||||||||||||||||||||||||
I-beam track type | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 25a-63c | ||||||||||||||||||||||||||
Minium Turning Radius (m) | 1 | 1 | 1.2 | 1.8 | 2.5 | 3.2 | 1.2 | 1.5 | 2 | 2.8 | 3.5 | 1.2 | 1.5 | 2 | 2.8 | 3.5 | 1.5 | 2 | 2.5 | 3 | 4 | 2.5 | 3.5 | 4.5 | 6 | 7.2 | ||||||
Wire Rope Size(mm) | 6X37-4.8 | 6X37-7.4 | 6X37-11 | 6X37-13 | 6X37-15 | 6X37-15 | ||||||||||||||||||||||||||
Net Weight(Kg) | 121 | 125 | 130 | 137 | 145 | 172 | 188 | 204 | 220 | 221 | 232 | 285 | 309 | 332 | 353 | 281 | 297 | 354 | 390 | 420 | 451 | 473 | 495 | 597 | 646 | 686 | 726 | 1048 | 1098 | 1209 | 1310 | 1411 |
Power supply | 220V-440V,3phase,50/60HZ | |||||||||||||||||||||||||||||||
